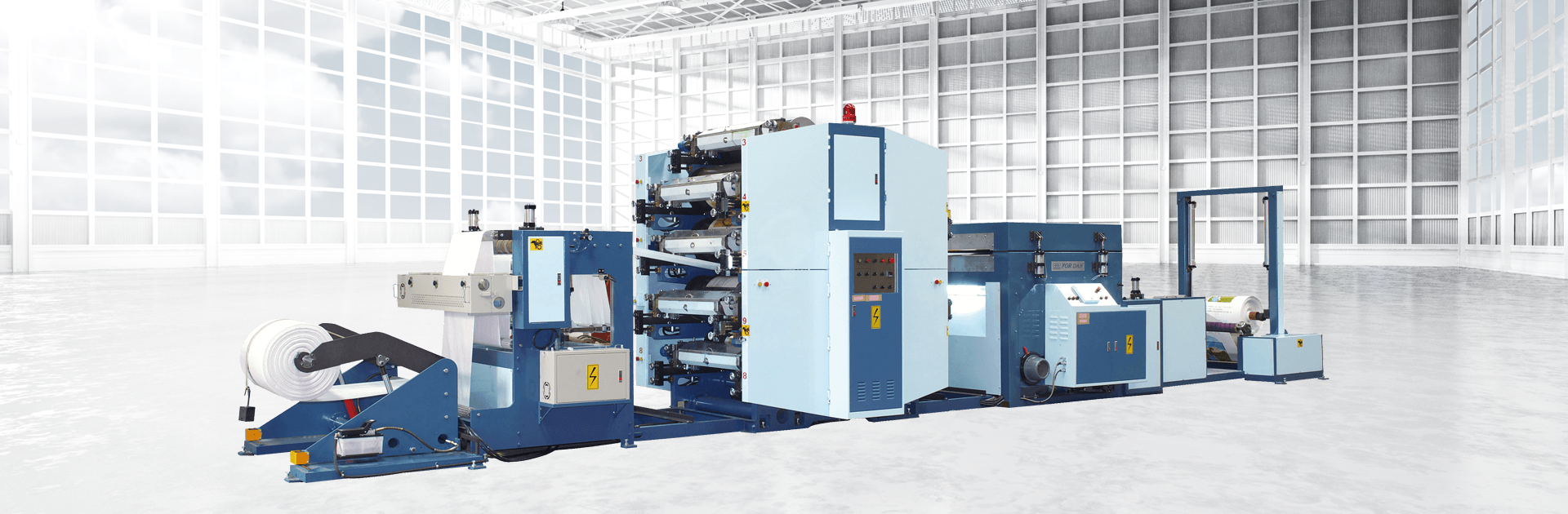

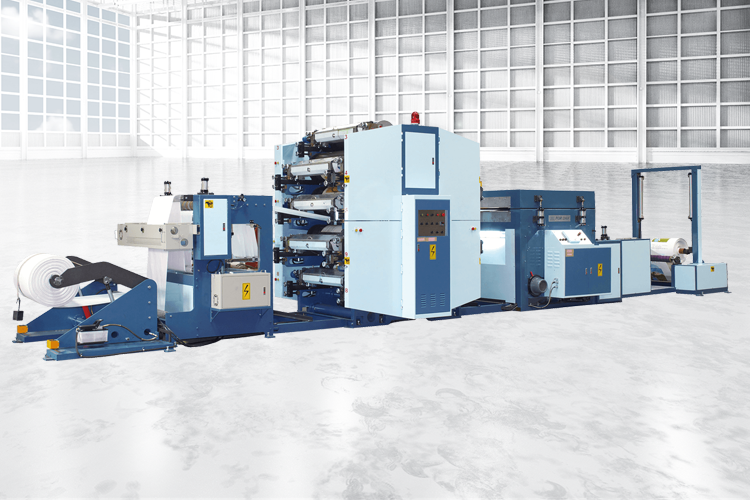

Flexographic Double Side Servo Control 4~9 Color Roll to Roll Printing Machine (Indirect Printing)

300 Series

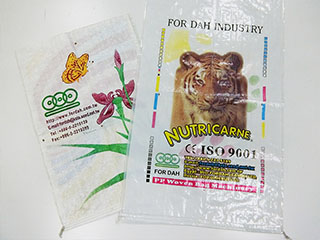

The machine is applied for solvent-based ink and indirect printing method for PP woven bag with/without lamination, it is suitable for ordinary printing with simple pattern i.e logo, words, image, which is required for stuff presentation and company identification.

Features

  • Bag length changing is quickly accomplished by pushing the button on touch panel without changing the plate cylinder.
  • With colorful operator-friendly human machine interface (HMI) offers English, Spain, Russia, Arabic, Chinese, French to access the machine control easily.
  • Equipped servo control which minimizes variation and accurate printing size calculation.
  • Independent lengthy oven to dry the front side and back side of woven cloth at one time.
  • Equipped with auto. ink circulation device to maintain uniform ink viscosity giving good printing quality.
  • Unique gear design allows printing registration by up/down and right/left without stopping the machine.
  • Magnetic cloth covered plate cylinder makes the plate mounting easy and quick on steel sheet.

Select Your Model

Model
No. of Color
Applicable Bag Size (W*L)
Printing Area
Max. Printing Speed
Max. Roll Diameter
3+1 4+2 or 3+3 5+3 or 4+4
850 x 1400 mm 850 x 1400 mm 850 x 1400 mm
800 x 1100 mm 800 x 1100 mm 800 x 1100 mm
45~55 pcs/Min 45~55 pcs/Min 45~55 pcs/Min
∮1200 mm ∮1200 mm ∮1200 mm

Included Device

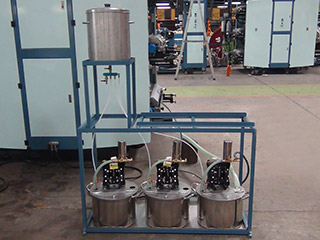

  • Auto. Ink Circulation System (Quantity depends on the printing color)

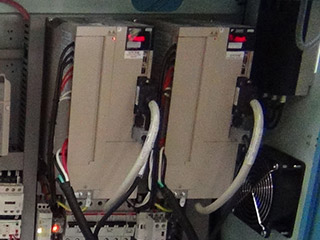

  • Servo Motor x 1 Set

Optional Device
